• Vertical Transportation options with versatile loading-unloading patterns.
• VRCs are tailor-made to customer requirements and applications.
• Superior design and manufacturing quality.
• Designed in compliance with Poka-Yoke system of safety.
• Highly efficient operation as compared to transportation by manual MHE.
• Can be installed indoors, outdoors, shelving systems and shaft-wells.
• Versions compatible for use in fire or explosion prone areas available.
• Electro-mechanical drive. Fully automated designs available.
• Individually designed for loads ranging from 200kg. to 7500 kgs.
• Can be designed for heights up to 60m.
• Over 1500+ successful installations.
• Complete turnkey installations.
• Speeds of up to 25 metres / minute.
• Wide-ranging applications from E-commerce, Automobile to Pharmaceutical industries.

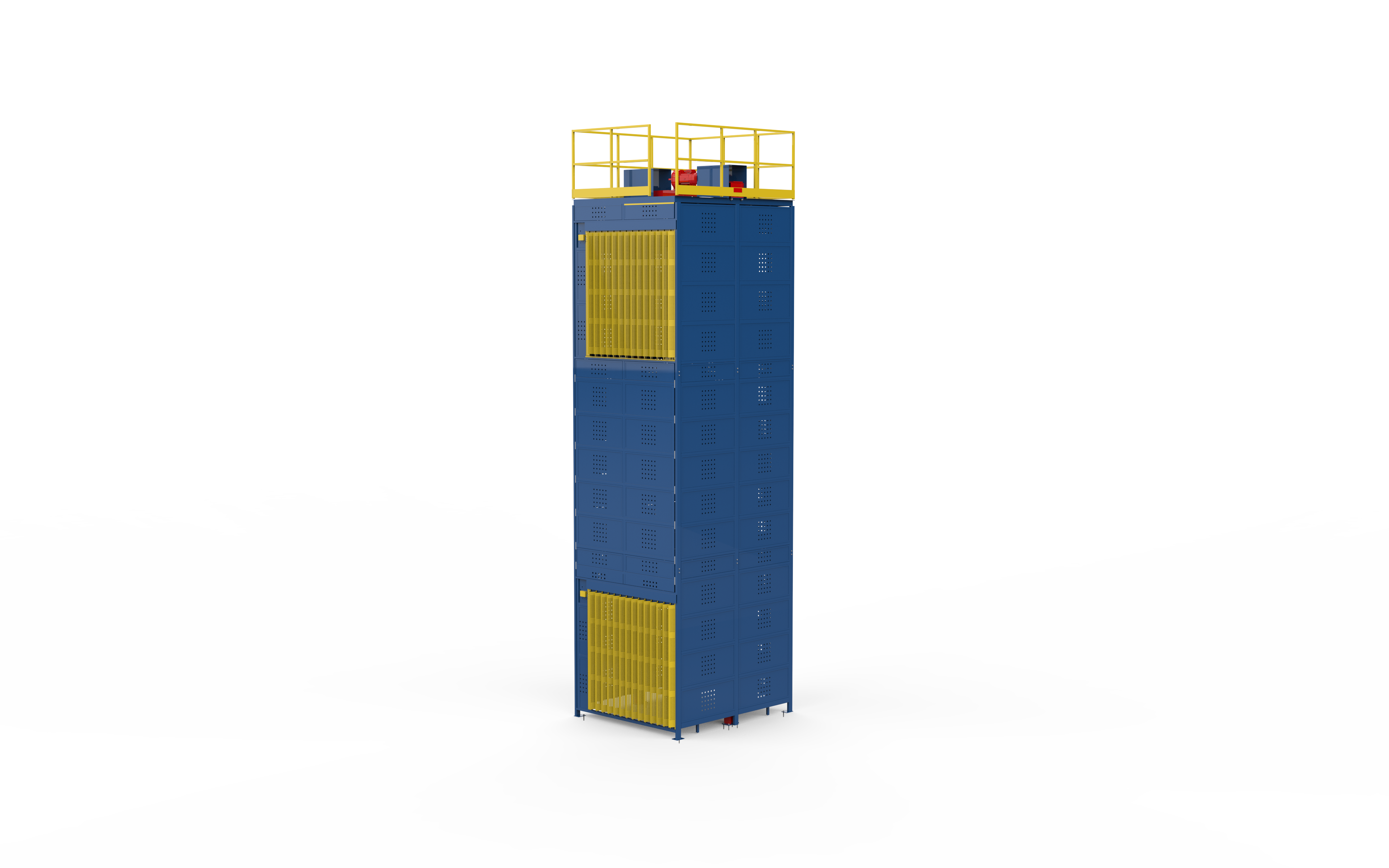

LEVA Duo

LEVA Duo Vertical Reciprocating Conveyors consist of a tubular steel structure with 2 load bearing beams for support and are designed for loads up to 2000kgs.

This VRC can be used for same side entry-exit, opposite side entry-exit or cantilevered carriage options. The payload is transported on a carriage by means of mechanical roller chains, driven by a electro-mechanical drive coupled with a gearbox.

With standard in-built systems such as mechanical interlocks for access doors and advanced safety-cam systems which are integral with the VRC operation, a highly safe and reliable operation is achieved.

With a simple and sturdy construction, the LEVA Duo VRC provides an efficient, fast and reliable means for your vertical transportation needs.

This equipment is strictly meant only for the transportation of goods and elaborate warning signages are provided at each access point. Moreover, since no controls are present inside a carriage, operating the equipment from inside the carriage is not possible for an individual and is the most effective deterrent for misuse.

LEVA Quadro

UM 4-Post Vertical Reciprocating Conveyors consist of a tubular steel structure with 4 load bearing beams for support and are designed for loads above 2000 kgs. Or for large carriage sizes.

UM 4 Post VRCs can be used with same side entry-exit, opposite side entry-exits or 90 degree entry-exit options.

With standard in-built systems such as mechanical interlocks for access doors and advanced safety-cam systems which are integral with the VRC operation, a highly safe and reliable operation is achieved.

With a simple and sturdy construction, the LEVA Qudro VRC provides an efficient, fast and reliable means for your vertical transportation needs.

This equipment is strictly meant only for the transportation of goods and elaborate warning signages are provided at each access point. Moreover, since no controls are present inside a carriage, operating the equipment from inside the carriage is not possible for an individual and is the most effective deterrent for misuse.

LEVA Auto

LEVA Automated VRC is our premium offering and our company pioneered the use of automation in VRCs.

Fully Automated VRC is designed to limit human-machine interactions and thereby ensure additional safety in the work environment.

Fully automated VRCs can be designed in identical configurations to those of LEVA Duo and LEVA Quaddro variants.

Fully automated VRCs can be integrated with supplementary conveying and sorting systems. The control circuit and operational program can be customized to suit individual applications. Strategically placed sensors ensure a worry-free operation. Fully automated systems give high operational efficiency by optimizing human interaction with the equipment.

This equipment is strictly designed for the transportation of goods only. Safety guards, rails and interlocks are provided at potentially hazardous locations to prevent misuse and hazards.

SPIROTRAC (SPIRAL GRAVITY CHUTE)

Spiral gravity chute as the name suggests is a series of rollers placed along a downward helical path that allow carton boxes or similar cargo to be sent from multiple floors to the ground floor.

Ideal for applications requiring high frequency material transfer of goods from upper floors.

Its compact helical design ensures optimum space utilization.

Zero power requirement.

Ease of operation

Manual loading & unloading

Upgradable by integration with conveyor systems

Suitable for handling packaged items, totes, cartons weighing up to 40 kg

Requires minimal maintenance

This equipment is strictly meant only for the transportation of goods and elaborate warning signages are provided at each access point. Moreover, since no controls are present inside a carriage, operating the equipment from inside the carriage is not possible for an individual and is the most effective deterrent for misuse.

VITA (GRAVITY CHUTE)

A Gravity Chute is a “Low Cost, Zero Power” equipment for transporting packaged goods i.e. carton boxes not weighing more than 35-40 kgs from various levels of the storage system to the ground level.

An application that does not demand a metered flow of goods to the outward staging area and where the material configuration is within a very closed range.

As the floor space requirements vary with each application, we request you to consult with our engineers before making any civil modifications.
